MORE DI

Use this instead of a microphone.

No sound spill from other amps.

Works with Guitar or Bass

    Features

No external power required

No added noise level

No feedback

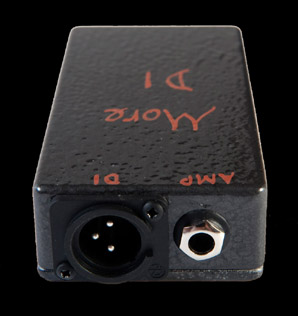

Input connects to the extension speaker socket of your amp with a standard jack-to-jack lead.

Output is balanced line connecting to the PA/ Recording desk with a standard XLR cable.

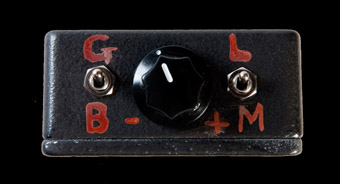

G/B switch gives different voicings for guitar or bass.

M/L switch gives mic or line level output.

Output level controls the output signal from -70 to +18dB

The DI box uses a special tone filter circuit designed by me to allow electric guitar to be connected to a PA whilst maintaining the original amp tone (both preamp AND poweramp) through full range speakers.
